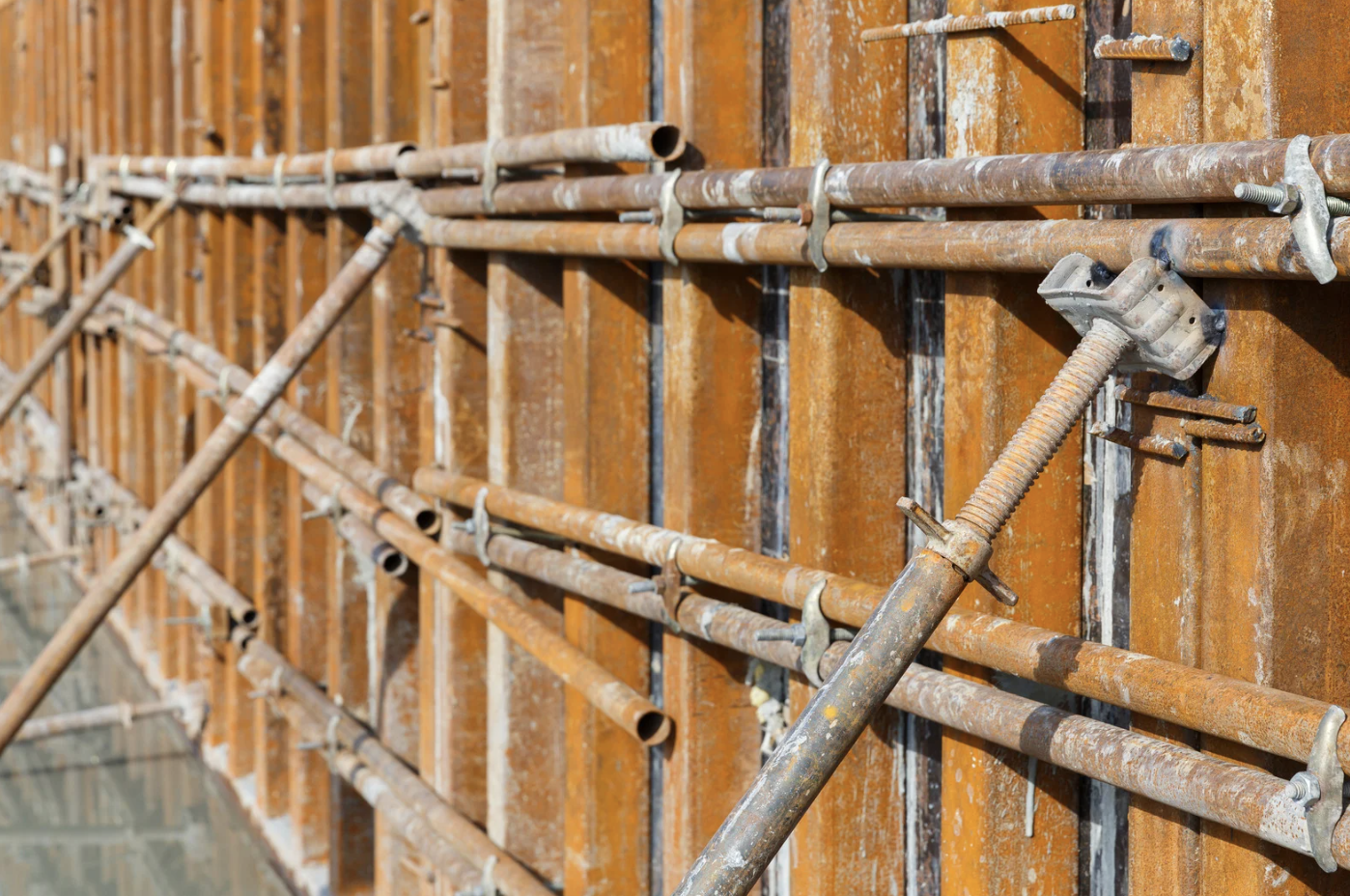

Plywood formwork is a temporary mould used in construction to shape concrete, allowing for the creation of various structures such as house foundations and commercial building walls. This system, known as concrete form plywood, keeps wet concrete in position until it hardens and becomes strong.
First-time builders often face common challenges with formwork:
- Choosing the incorrect plywood grade for their project requirements
- Using poor assembly methods that result in concrete blowouts
- Failing to properly brace the formwork, leading to failure during pours
- Mishandling materials, causing damage and unnecessary expenses
Getting formwork right the first time saves money, prevents delays, and ensures structural integrity. These 5 plywood formwork tips for first-time builders will guide you through the essential techniques needed for successful concrete construction projects across formply Australia applications.
Tip 1: Plan Your Project Scope and Material Needs Carefully
Accurate project assessment determines formwork success. Start by measuring your concrete structure dimensions – whether you’re forming slabs, walls, or foundations. Calculate the total surface area requiring formwork coverage, then add 10-15% extra for cuts and waste.
F14 vs F17 plywood selection impacts both performance and budget. F14 grade suits lighter residential applications like house slabs and garden walls, whilst F17 handles heavier commercial loads and multi-storey construction. F17 costs approximately 20-30% more but provides superior strength for demanding projects.
When you buy formply, create a comprehensive materials list:
- Plywood sheets (calculated quantity plus extras)
- Structural timber (two-by-fours for framing)
- Fasteners (galvanised nails, screws, brackets)
- Form ties and release agents
- LVL formwork and beams for additional support
Planning plywood formwork requires procuring all materials before starting construction. Missing components cause costly delays and can compromise concrete pour schedules. Source materials from reliable suppliers who guarantee consistent quality and delivery timeframes.
Tip 2: Design and Assemble Stable Formwork Structures
Stability begins with proper formwork thickness and height calculations. Standard 17mm plywood provides adequate strength for most residential pours, whilst 19mm thickness suits commercial applications with higher concrete pressures.
LVL formwork delivers superior structural performance at competitive costs. Position LVL beams vertically for wall forms and horizontally for slab applications. These engineered beams resist warping better than traditional timber whilst reducing material expenses through extended reuse cycles.
Assembling Plywood Formwork Framework
- Frame construction: Build sturdy frames using 90mm x 45mm timber studs spaced 400mm centres
- Plywood attachment: Secure sheets with 75mm galvanised nails every 150mm along edges
- Corner reinforcement: Install additional blocking at all corner joints
- Form ties placement: Position ties every 600mm vertically and horizontally for walls exceeding 1.2m height
Critical connection points require extra attention. Double-check all corner fastenings and verify form ties can withstand concrete pressure loads. Inadequate bracing at these stress points causes formwork failure during pours.
Tip 3: Proper Handling and Installation Techniques for Quality Results
Accurate measurements prevent costly material waste and ensure perfect formwork alignment. Mark cut lines clearly using a straight edge and sharp pencil, then cut with a circular saw fitted with a fine-tooth blade to achieve clean edges.
Film faced plywood requires specific positioning for optimal results. Place the smooth, film-coated surface facing inward toward the concrete pour. This orientation creates a superior finish quality and prevents the concrete from bonding to the formwork surface.
Sealing plywood surfaces dramatically improves performance and longevity:
- Apply waterproof sealant to all cut edges immediately after cutting
- Use marine-grade polyurethane or specialized formwork sealers
- Focus on end grain areas where moisture resistance is most vulnerable
- Allow 24 hours drying time before concrete contact
Proper edge sealing extends formwork reuse potential from 3-4 pours to 8-10 pours, significantly reducing project costs while maintaining structural integrity throughout multiple applications.
Tip 4: Reinforce Concrete Strength Through Correct Reo Bar Installation
Reo bars Australia specifications require proper placement to create durable reinforced concrete structures. Concrete excels in compression but fails under tension – reo bars provide the missing tensile strength that prevents cracking and structural failure.
Position reo bars according to engineering drawings before concrete placement. Maintain proper cover distances from formwork edges to prevent corrosion exposure. Use plastic spacers or chairs to achieve correct positioning throughout the pour area.
Critical installation practices include:
- Securing bars with tie wire at intersection points
- Checking alignment with string lines for straight runs
- Maintaining minimum lap lengths when joining bars
- Ensuring adequate clearance from formwork surfaces
Clean reo bars remove any rust, oil, or debris that could compromise concrete bonding. Bent or damaged bars lose structural integrity and require replacement. Double-check all connections meet Australian Standards AS/NZS 4671 before concrete arrives on site.
Tip 5: Pouring Concrete and Post-Pour Care for Optimal Formwork Performance
Concrete pouring tips start with maintaining a steady, controlled pour rate. Pour concrete in layers no thicker than 450mm, working systematically from one end to avoid creating weak spots. Use a concrete vibrator to eliminate air bubbles that compromise structural integrity and surface finish quality.
Temperature control during pouring prevents thermal shock to your plywood formwork. Pour during cooler parts of the day when possible, avoiding extreme heat that can cause rapid moisture loss and cracking.
Curing concrete properly determines your project’s long-term success. Keep concrete surfaces continuously moist for the first seven days using wet hessian, plastic sheeting, or curing compounds. This moisture retention allows concrete to achieve up to 90% of its design strength.
Monitor your formwork during the curing period for any signs of movement or bulging. The concrete’s weight and hydration process create significant pressure that can compromise poorly secured forms.
Conclusion
These 5 Plywood Formwork Tips for First-Time Builders provide the foundation for creating durable concrete structures whilst maximising resource efficiency. Proper planning, stable assembly techniques, precise installation methods, correct reo bar placement, and careful concrete pouring practices will transform your construction outcomes.
